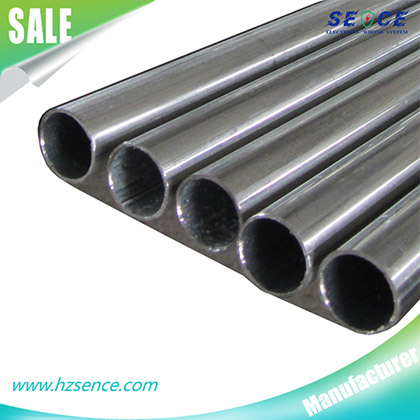

Electrical Metallic Tubing
EMT is manufactured from high-strength steel coil, and produced according to the standard of ANSI C80.3(UL797). The interior surface of our conduit is free from defect with a smooth welded seam. It is pre-galvanized /hot dipped galvanized inside and outside.so that metal-to-metal contact and galvanic protection against corrosion are provided, and the surface of the conduit is coated with a clear lacquer coating to inhibit white rust and increase corrosion resistance. The interior surface provides a smooth continuous raceway for easy wire pulling. Our EMT conduit has excellent ductility, providing for uniform bending and cutting.
Price
1 Unit = MOQ 10 Ton
Quantity Cost
1 Unit $8,336 / Unit
2 Units $8,030 / Unit
4 Units $7,728 / Unit
10 Units $7,576 / Unit
Shipping Details
20GP Container By Sea
Length: 3050mm or according to customer’s requirement
Usage: Through the electrical wires with the purpose of protection for the electrical raceway system
Surface finished: Pre-galvanized/Hot Dip Galvanized(HDG).
Material : Carbon Steel Coil
Package: The conduits coverd with pvc paper then tied with steel straps
Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
Payment Term: L/C at sight or TT
Specifications
| Material
Carbon Steel Coil Q195/Q235 |
Size
1/2″ to 4″ |
External(Outer) Diameter
(0.706in)17.93mm to (4.500in)114.30mm |
| Inner(Inside) Diameter
(0.622in)15.8mm to (4.334in)110.08mm |
Wall Thickness
1.07mm to 2.11mm |
Length
10ft(3.048mtr) or according to customer’s requirement |
| Standard
UL797/ANSI C80.3 |
Applicable Tolerances Length
10ft(3.048m) ± 1/4″ （± 6.35 mm） |
Applicable Tolerances O.D.½ ″ -2″ ± 0.005″ (± 0.13 mm); 2½ ″ ± 0.010″ (± 0.25 mm); 3″ ± 0.015″ (± 0.38 mm); 3½ ″ -4″ ± 0.020″ (± 0.51 mm) |
| Packing
Bundle with cloth rope or in woven bags |
Delivery Time
25 to 35 days after we receive your advance payment or copy of L/C |
Payment Term
L/C at sight or T/T |
