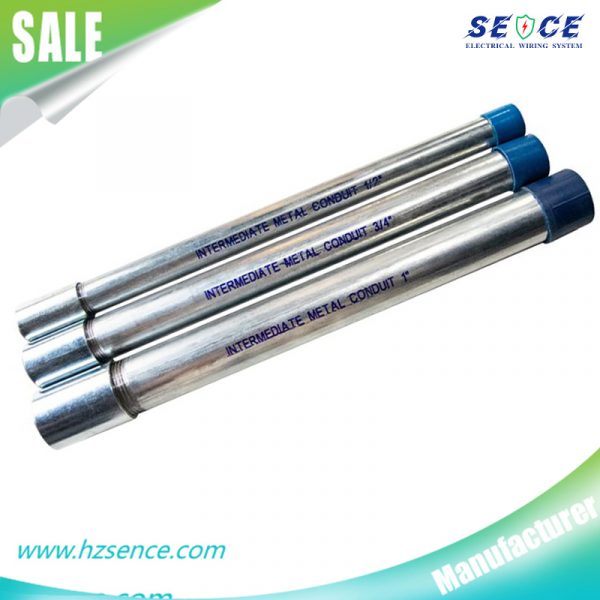

Intermediate Metal Conduit

IMC is manufactured from high-strength steel coil, and produced according to the standard of ANSI C80.3(UL797). The interior surface of our conduit is free from defect with a smooth welded seam. It is pre-galvanized /hot dipped galvanized inside and outside, so that metal-to-metal contact and galvanic protection against corrosion are provided, and the surface of the conduit is coated with a clear lacquer coating to inhibit white rust and increase corrosion resistance. The interior surface provides a smooth continuous raceway for easy wire pulling. Our IMC conduit has excellent ductility, providing for uniform bending and cutting.
Price
1 Unit = MOQ 10 Ton
Quantity      Cost
1 Unit           $7,858 / Unit
2 Units         $7,668 / Unit
4 Units         $7,488 / Unit
10 Units       $7,288 / Unit
Shipping Details
20GP container by sea

Categories :
Contact Now
  • Description

Product Details

* Length: 3048mm or according to customer’s requirement
* Usage: Through the electrical wires with the purpose of protection for the electrical raceway system
* Surface finished: Pre-galvanized /Hot Dip Galvanized(HDG).
* Material : Q195 Carbon Steel Coil
* Package: The conduits coverd with pvc paper then tied with steel straps
* Delivery time: 25 to 35 days after we receive your advance payment or copy of L/C
* Payment Term: T/T, LC at sight

Specifications

Material

Q195 Carbon Steel Coil

 Size

1/2″- 4″

 External(Outer) Diameter

(0.815in)20.70mm to (4.466in)113.44mm
Inner(Inside) Diameter

(0.660in)16.76mm to (4.166in)105.82mm

 Wall Thickness

1.97mm to 3.81mm

 Length

10ft(3.048mm) or according to customer’s requirement
Standard

UL 1242/ ANSI C80.6

 Applicable Tolerance Length

10 Ft ± 1/4″ (± 6.35 mm)

 Applicable Tolerance O.D.

1/2″-1″ ± 0.005 “(± 0.13 mm); 1-1/4” -2 “± 0.0075” (± 0.19 mm); 2-1/2 “-4” ± 0.01 “(± 0.25 mm)
Packing

Bundle with cloth rope or in woven bag

 Delivery Time

20 to 30 days after we receive your advance payment or copy of L/C

 Payment Term

L/C at sight or T/T



Key Features

Process:Pre-galvanized/Hot Dipped Galvanized
Interior Surface Technique:Welding Seam Smooth without Burrs
Section Handling:The inside and outside chamfer
Usage:Through the electrical wires with the purpose of protection for the electrical raceway system
