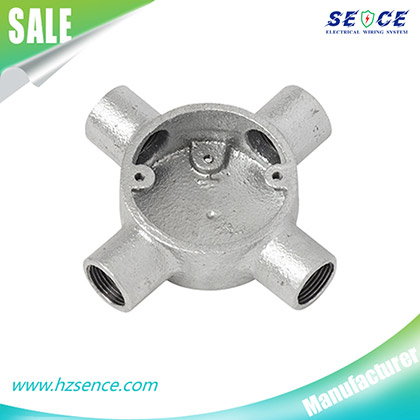

Malleable Iron Intersection 4 Way Circular Junction Box

Circular Junction Box is used to connector EMT/IMC/RSC/BS conduit, to protect the wire cable from damaging. It is made of Aluminium or Malleable Iron two material. Normally it is fit for America standard conduit and BS conduit. We divide it into two types, threaded and threadless. The outlet hole sized from 1/2" , 3/4" to 1" , to connect matched cable conduit. Available outlet hole we have 1 hole, 2 holes, 3 holes, 4 holes, elbow ,and T three holes, flexible to connect conduit. Special design and smooth surface to make sure install easily.
Price
1 Unit = 1pcs
Quantity           Cost
5,000 Units      $1.27 / Unit
20,000 Units    $0.90 / Unit
50,000 Units    $0.85 / Unit

Categories :
Contact Now
  • Description

Product Details

Product Name:Circular Junction Box
Material: Malleable Cast Iron
Technics:Casting
Surface Treatment:Hot Dipped Galvanized
Standard: BS4568 EN61386
Connection:Female Thread Connecting
Thread: Metric
Size: 20 25 32mm 3/4” 1”
Usage: Suit for BS4568 GI Conduit Cable Management System
60.3mm Internal Diameter
20mm Boxes Minimum 25mm Deep
25mm Boxes Minimum 28mm Deep
Tapped M4 AT 50.8mm centers
With tapped hole in base for earthing screws.
Supply without cover or fixing screws unless order.

Specifications

Material

Malleable Cast Iron

 Surface Treatment

Hot Dipped Galvanized

 Size

20mm /25mm /32mm 3/4” 1”
Connection

Female Thread Connecting

 Model

1,2,3,4 ,H,U,Y Way

 Package

In carton
Delivery Time

20 to 30 days after we receive your advance payment or copy L/C

 Leadtime

1-5000pcs 30 day,5001-20000pcs 35 days,20001-50000pcs 60days,>100000pcs to be negotiated

 Payment Terms

Irrevocable L/C 100% at sight or T/T



Key Features

Surface Technique:Hot Dipped Galvanized
Technics:Casting
60.3mm Internal Diameter,Tapped M4 AT 50.8mm centers,With tapped hole in base for earthing screws.
Standard: BS4568 EN61386
Usage: Suit for BS4568 GI Conduit Cable Management System
