Product Details

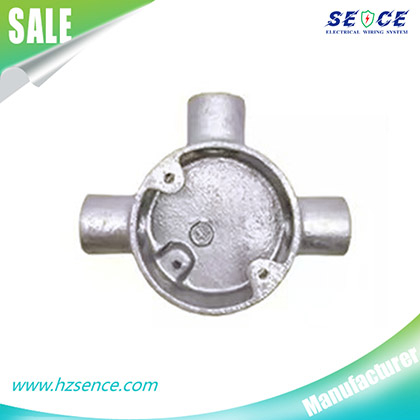

Product Name: Circular Junction Box
Material: Malleable Cast Iron
Technics:Casting
Surface Treatment:Hot Dipped Galvanized
Standard: BS4568 EN61386
Connection:Female Thread Connecting
Thread: Metric
Size: 20 25 32mm 3/4” 1”
Usage: Suit for BS4568 GI Conduit Cable Management System
60.3mm Internal Diameter
20mm Boxes Minimum 25mm Deep
25mm Boxes Minimum 28mm Deep
Tapped M4 AT 50.8mm centers
With tapped hole in base for earthing screws.
Supply without cover or fixing screws unless order.
Specifications
Material
Malleable Cast Iron |
Surface Treatment
Hot Dipped Galvanized |
Size
20mm /25mm /32mm 3/4” 1” |
Connection
Female Thread Connecting |
Model
1,2,3,4 ,H,U,Y Way |
Package
In carton |
Delivery Time
20 to 30 days after we receive your advance payment or copy L/C |
Leadtime
1-5000pcs 30 day,5001-20000pcs 35days,20001-50000pcs 60days,>100000pcs to be negotiated |
Payment Terms
Irrevocable L/C 100% at sight or T/T |
Key Features
Surface Technique:Hot Dipped Galvanized
Technics:Casting
60.3mm Internal Diameter,Tapped M4 AT 50.8mm centers,With tapped hole in base for earthing screws.
Standard: BS4568 EN61386
Usage: Suit for BS4568 GI Conduit Cable Management System
